Laser and Leveler 4D – Align Faster
Create precise alignments, plumb lines and layout marks on walls, floors and ceilings, indoors or on site.
Benefits of the 360° Laser Level

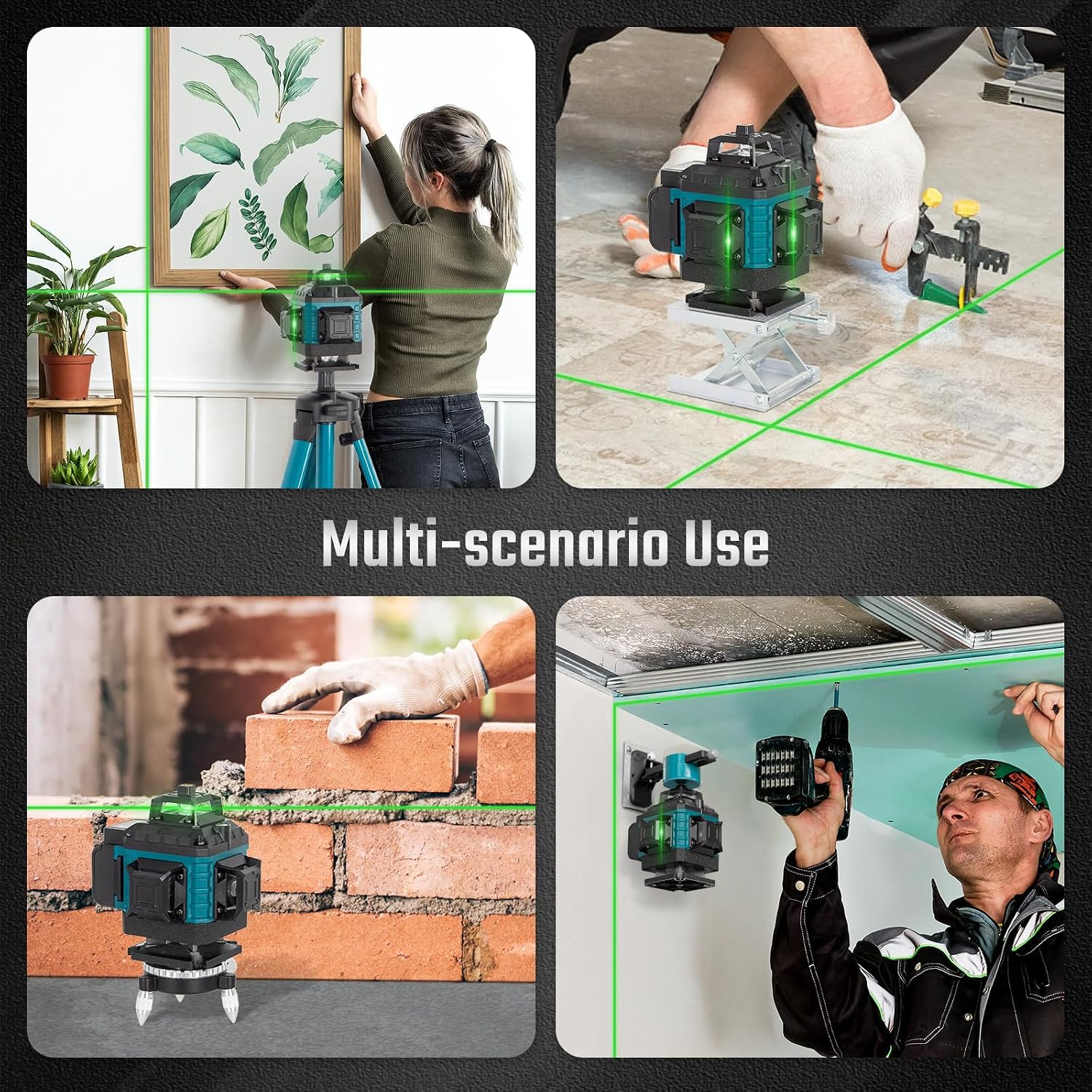

Laser Level for Drywall: Practical Uses
Partitions and Drywall
Project reference lines for installing partitions, tracks and drywall.
Furniture and Joinery
Align furniture, shelves and joinery elements with continuous reference lines.
Tiling and Leveling
Use the horizontal and vertical planes for tile installation and floor or wall marking.
Interior Renovation
Move from room to room with equipment designed for interior renovation work.
False Ceilings and Light Fittings
Make it easier to set out false ceilings and position light fittings.
Construction and Finishing Work
Take a versatile tool to construction and finishing work on site.
Home Installations
Create the levels and plumb lines needed for home installations.
Sloped Angles
Switch to manual mode to mark sloped angles that do not correspond to a standard level.
4D Laser Level in Detail

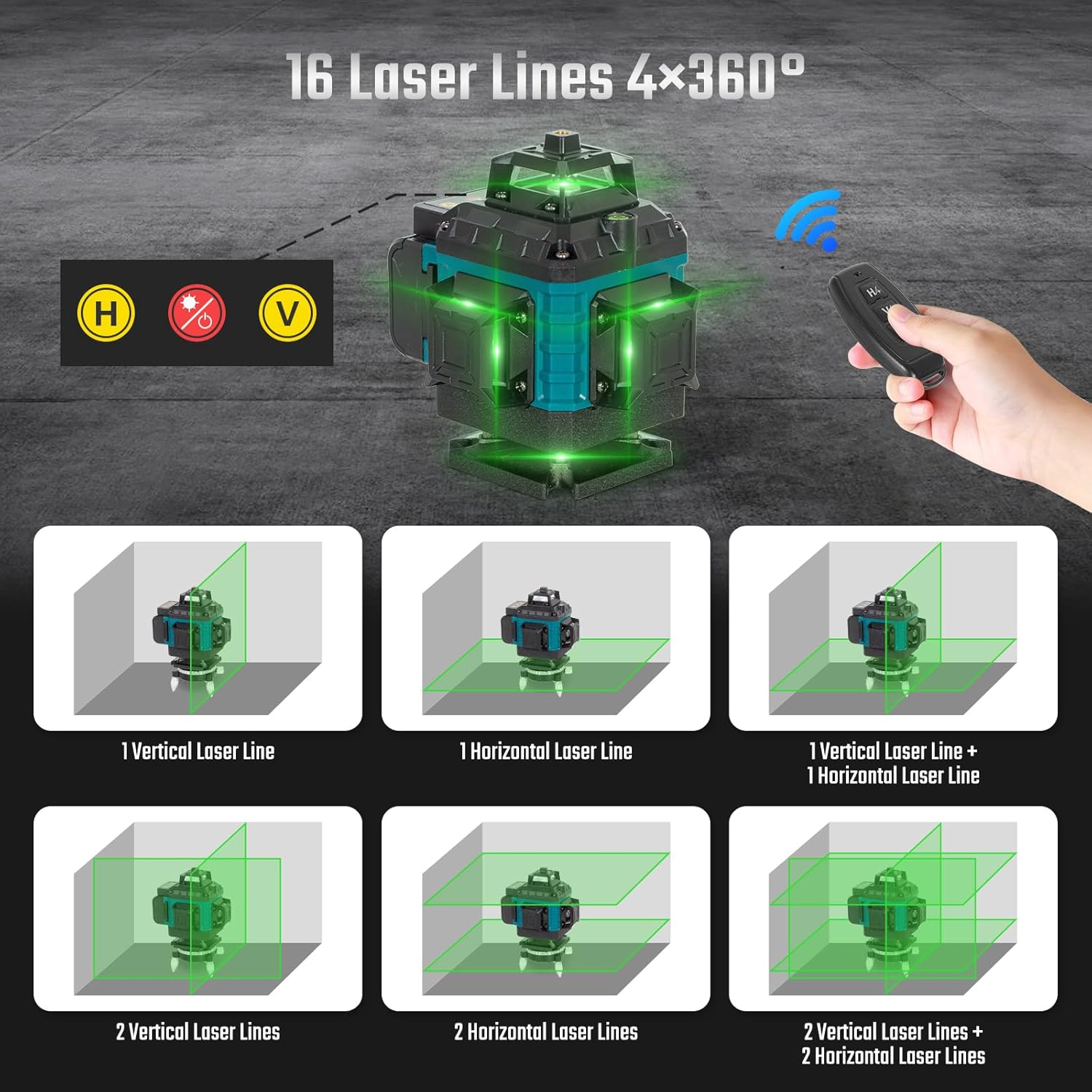

This site laser level projects two horizontal planes and two vertical planes, helping you quickly mark out the axes needed for renovation, construction and finishing work.

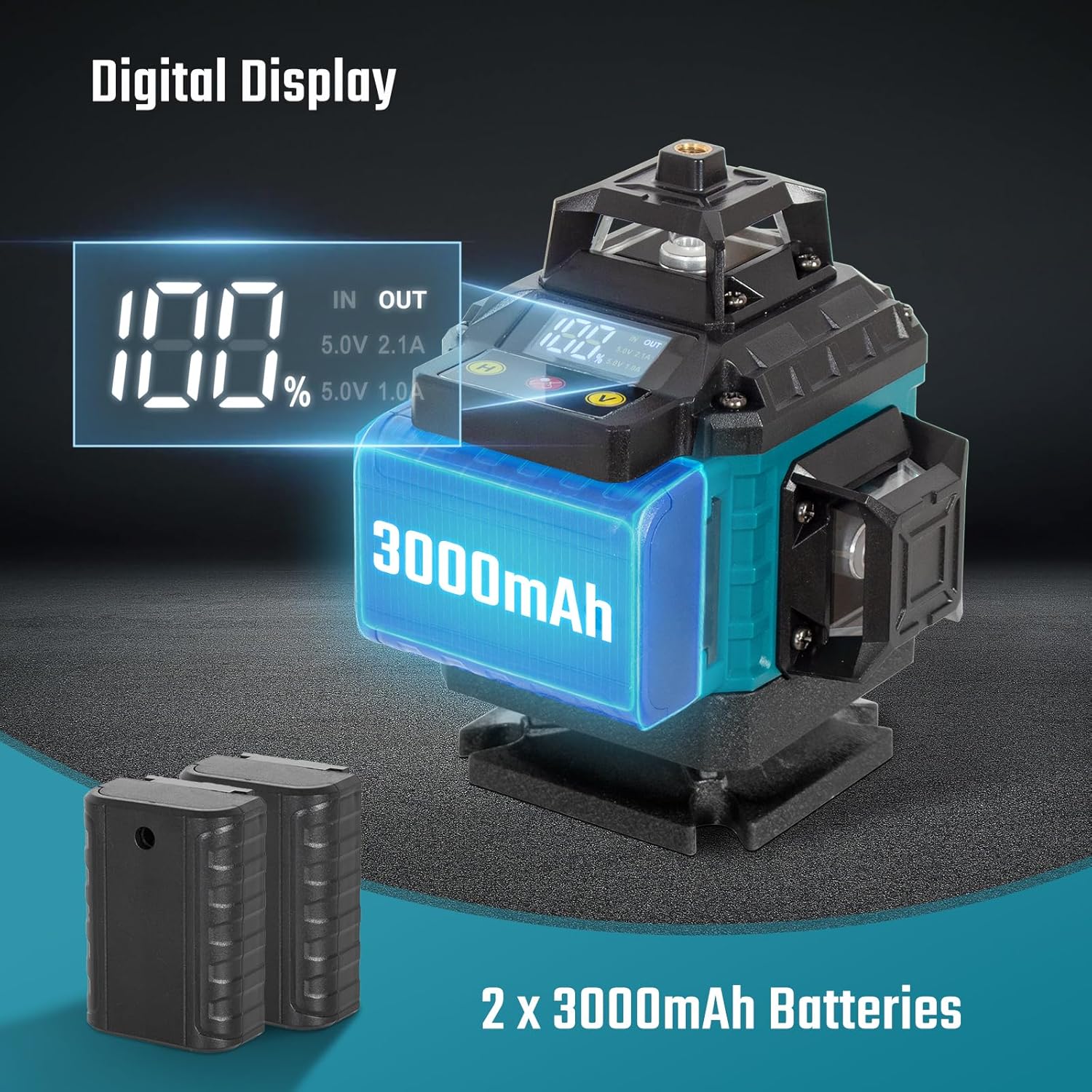

Adjust the brightness to suit your surroundings and make the 515 nm green beam easier to work with. The visible range reaches 20 m, while the LED screen shows battery charge, voltage and current in real time.
For partitions, tracks, plasterboard, furniture, shelves, tiling, false ceilings and light fittings, the included supports make positioning on a wall, floor or laser level tripod straightforward. As a 360 laser level, it provides continuous reference lines around the work area.

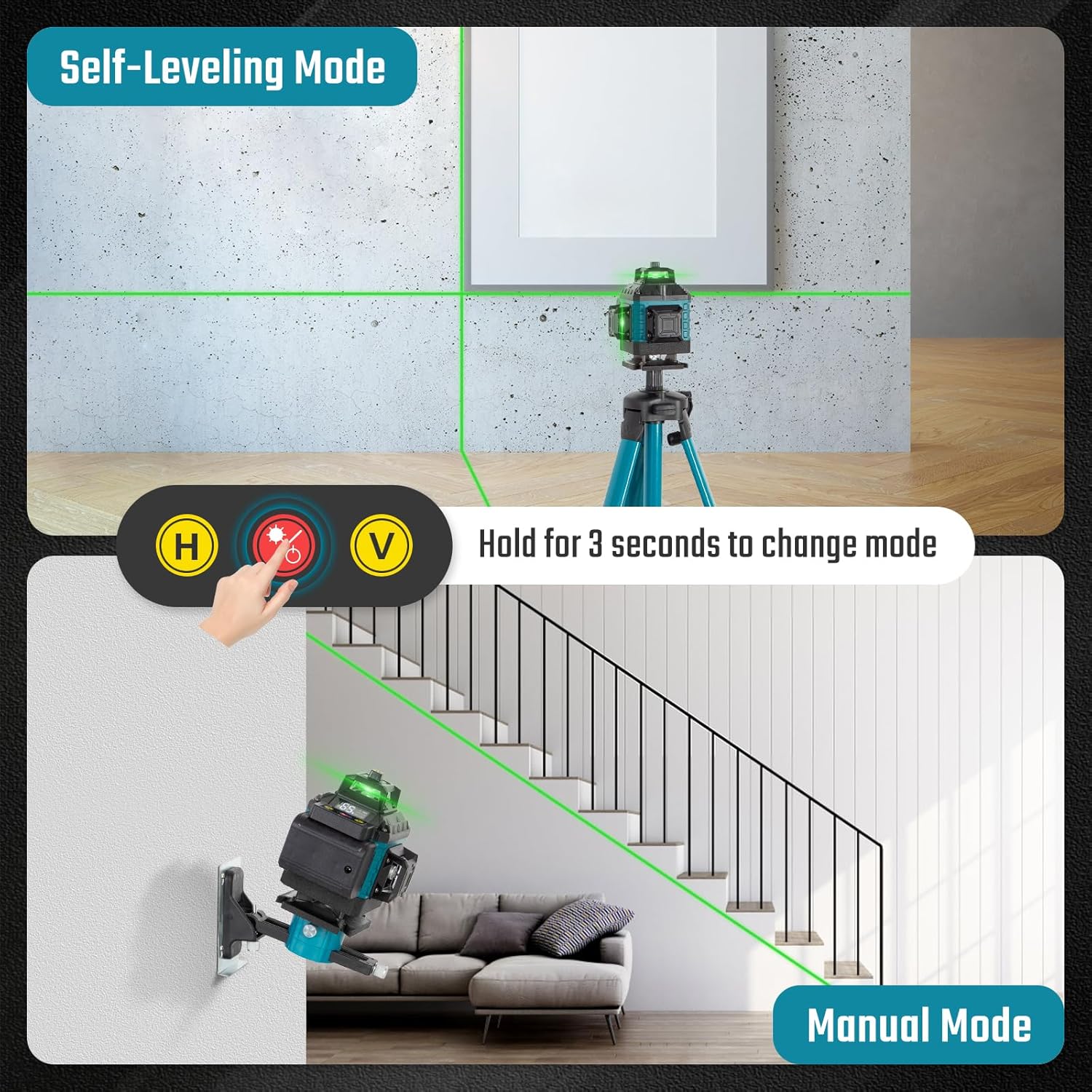

The manual mode projects lines at your chosen angle, including for sloped layouts.
Its metal construction, carrying case and two rechargeable batteries make this line laser suitable for transport between different work areas.
Which Laser Level Suits Your Project?
- For the stated accuracy of ±1 mm at 7 m, use the reference at the specified distance.
- Position the surface correctly: automatic self-leveling works on inclines of up to 3°.
- Consider the ambient brightness: the stated visible range is 20 m, and visibility may be less comfortable in direct sunlight.

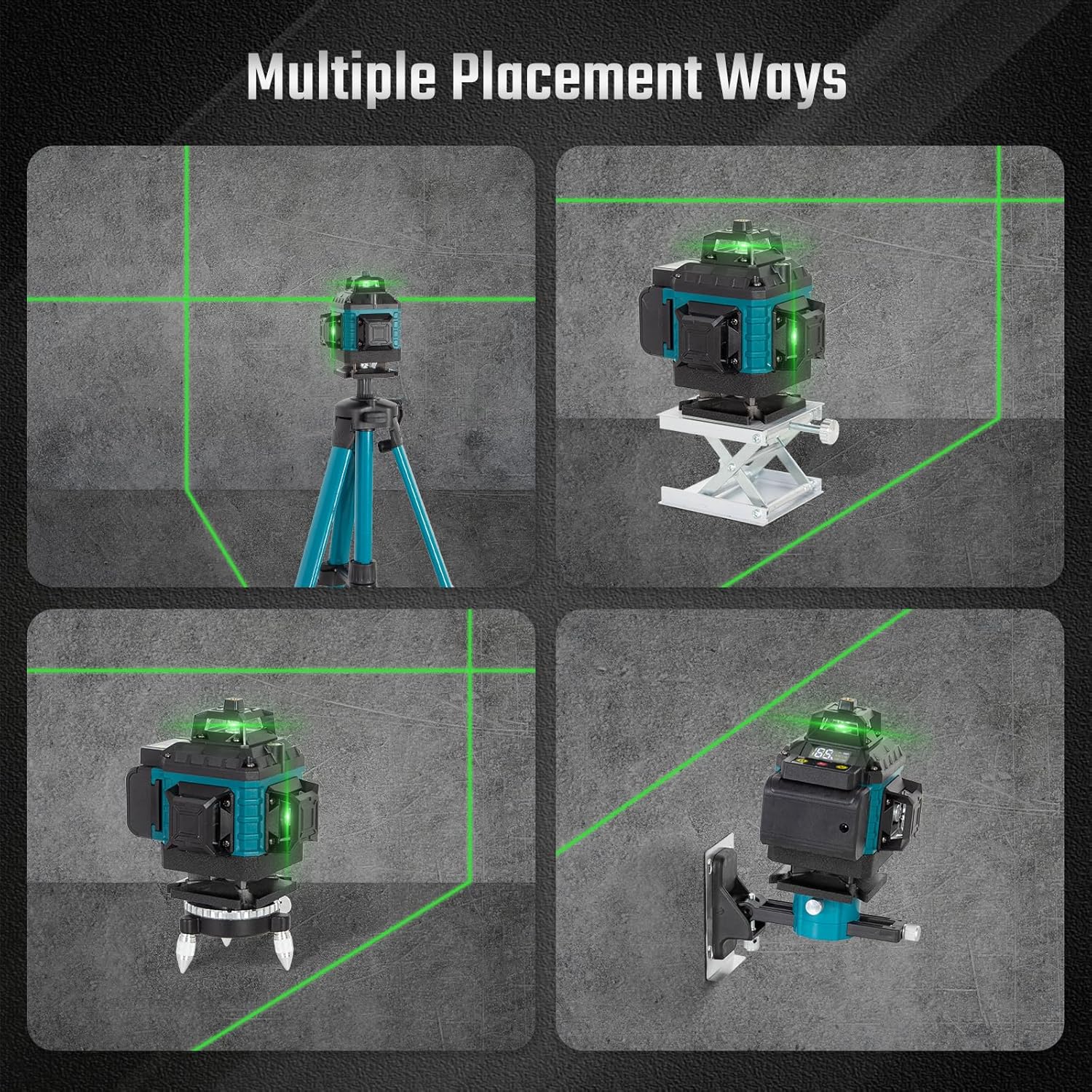

- Choose the right support for your task from the adjustable tripod, metal elevating base, wall mount, 360° rotating base and mini tripod.
- For sloped markings, select manual mode and set the angle deliberately.
- Make sure the 4 kg weight suits your transport and overhead installation needs.
360° Laser Level: Technical Specifications
- Brand
- Todeco
- Type
- Laser level
- Colour
- Green
- Laser configuration
- 4 × 360°; 16 lines; 4D
- Laser planes
- Two horizontal planes and two vertical planes
- Wavelength
- 515 nm
- Accuracy
- ±1 mm at 7 m
- Visible range
- 20 m
- Self-leveling
- Automatic up to a 3° incline
- Operating modes
- Automatic and manual
- Over-range alert
- Continuous audible signal beyond a 3° incline
- Display
- LED screen showing battery charge, voltage and current
- Batteries
- 2 rechargeable 3000 mAh lithium-ion batteries
- Brightness adjustment
- Yes
- Remote control
- Included, with separate selection of horizontal and vertical planes

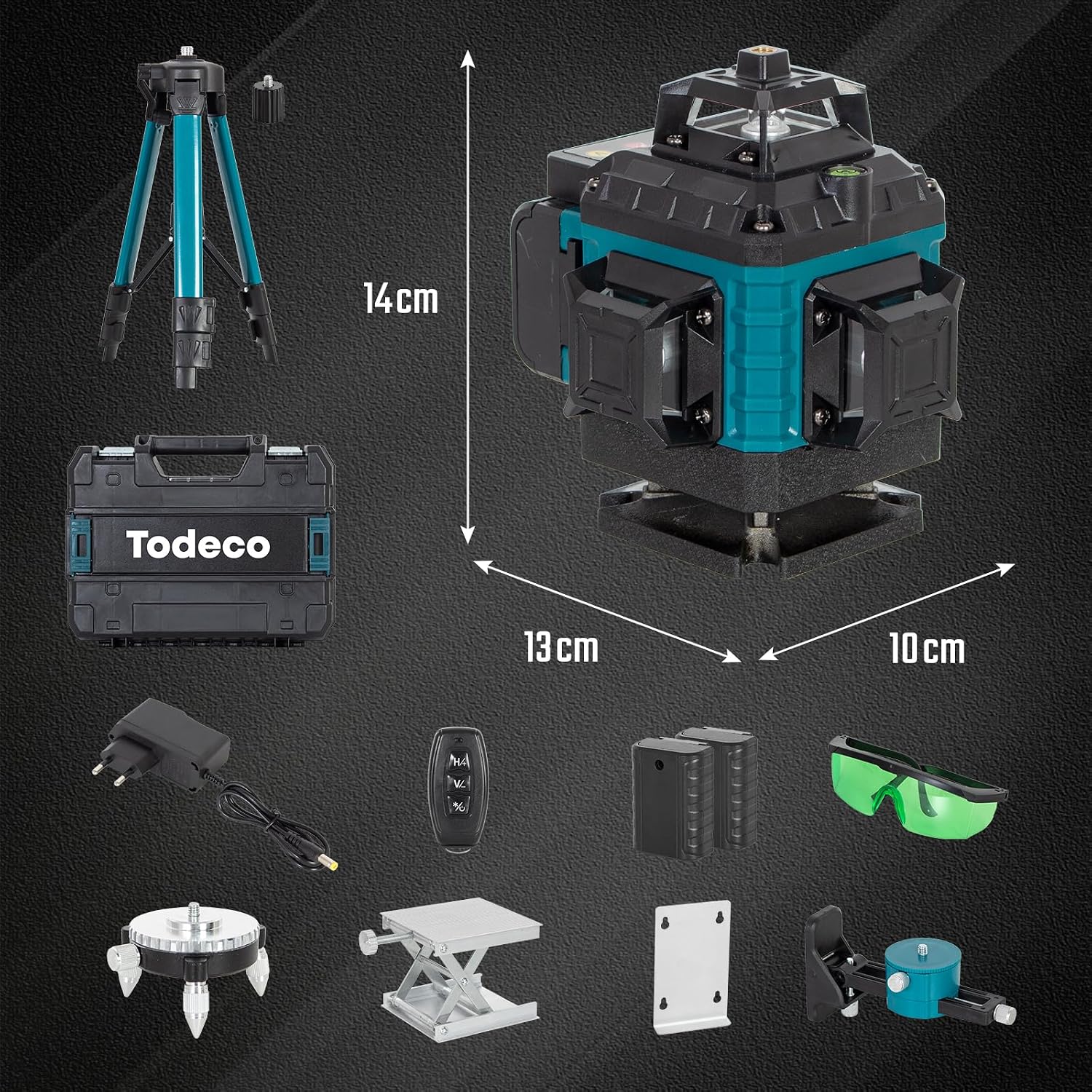

- Included supports

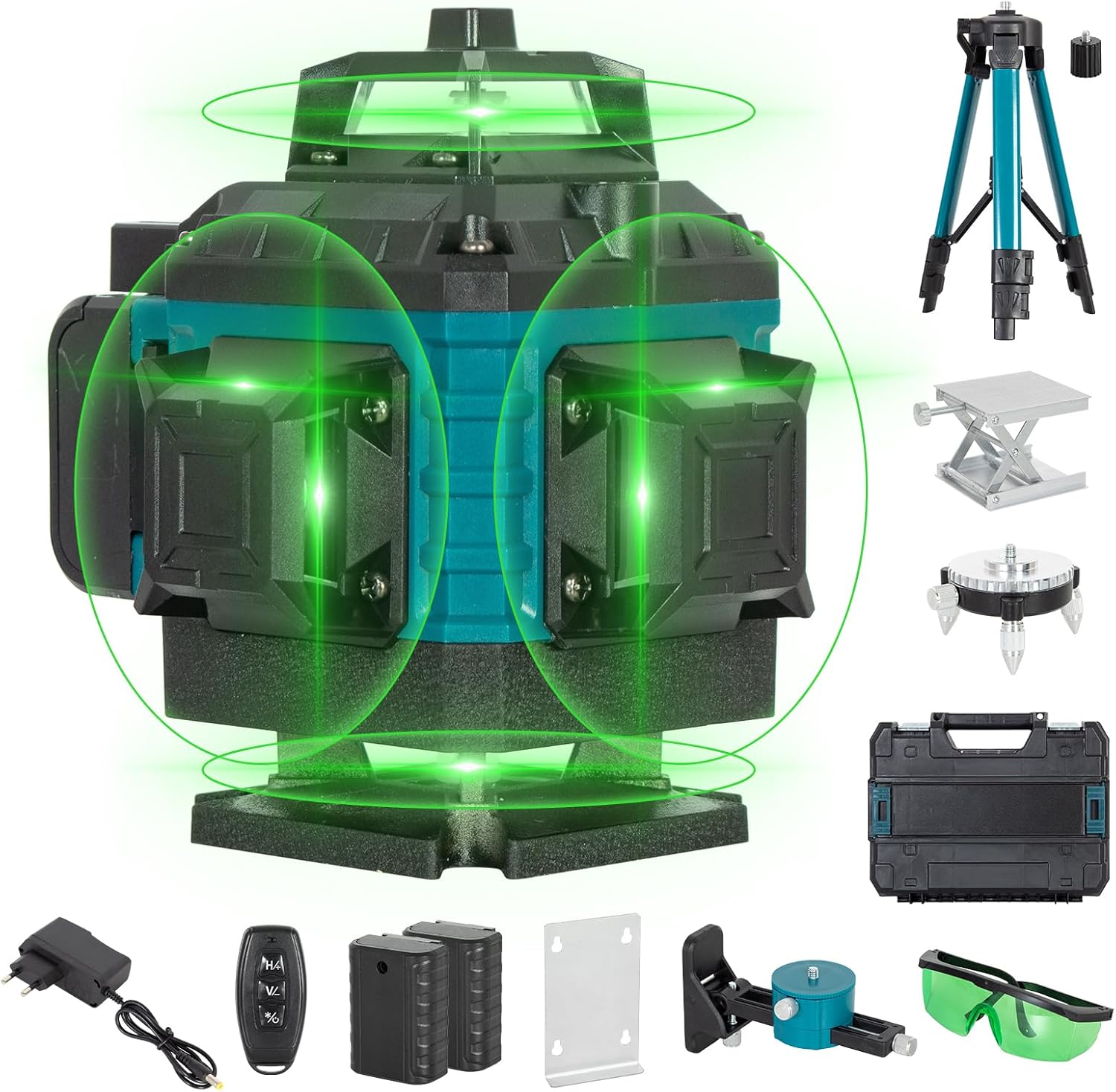

- Height-adjustable tripod, metal lifting base, wall mount, 360° rotating base and metal mini tripod
- Protection
- Resistant to splashes, moisture and dust
- Carrying case
- Included
- Material
- Metal
- Dimensions
- 14 × 13 × 10 cm
- Weight
- 4 kg
- Reference
- 0471-T-1
Laser Level: Your Questions Before Buying
What accuracy can I expect from this laser level at 7 m?
The stated accuracy is ±1 mm at 7 m. Accuracy at a greater distance is not specified in the available data.
What is the visible range of this laser level on a job site?
The stated visible range is 20 m. Visibility can vary with ambient brightness, particularly outdoors or in direct sunlight.
How far can the automatic leveling work on this laser spirit level?
Automatic leveling works up to a 3° incline. Beyond that, a continuous audible signal warns that the unit is outside its self-leveling range.
Is this laser level resistant to water and dust?
The housing is resistant to splashes, moisture and dust. No IP rating is specified, and the unit should not be considered submersible.
How much does this site laser level weigh?
The stated weight is 4 kg. Keep this in mind for frequent carrying or overhead installations.
How do I select projected lines remotely?
The included remote control lets you select the horizontal and vertical planes separately. With 16 lines and 4 × 360° planes, some familiarisation may be needed to choose the references you need.
How long do the 3000 mAh batteries last?
Exact runtime is not specified.
Does manual mode keep automatic leveling active?
Manual mode projects the lines at a chosen angle and disables normal automatic leveling. The angle must then be set deliberately.
Does this laser level and tripod kit include mounting supports?
Stability depends on the support selected and how it is positioned.
What should I look for when choosing the best laser level?
For a good laser level, compare concrete specifications rather than search labels such as best rated laser level: this model offers ±1 mm at 7 m accuracy, a 20 m visible range and a 4 × 360° configuration.
